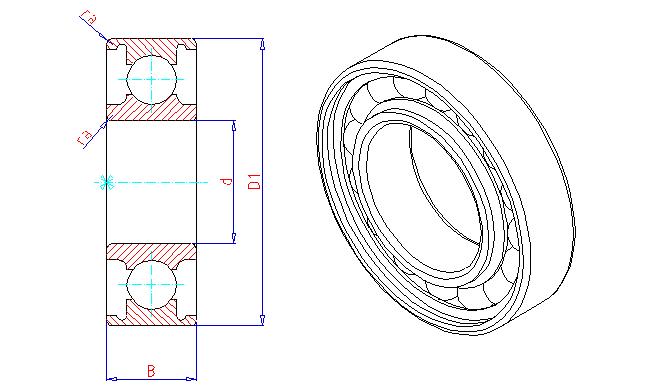

100-KS Series Single Row Radial Ball Bearings
Single Row Radial Ball Bearings
Item # |
Bore d |
Outside Diameter D1 |
Width B |
Basic Dynamic Radial Load Rating C |
Basic Static Radial Load Rating Co |
Accessories |
|---|---|---|---|---|---|---|
| 109-KSZ | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A One Seal |
| 109-KSZZ | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A Two Seals |
| 109-KSF | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A One Shield |
| 109-KSFF | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A Two Shields |
| 109-KSFZ | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A Shield & Seal |
| 109-KSG | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A Snap-Ring |
| 109-KSFG | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A One Shield & Snap-Ring |
| 109-KSZG | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A Seal & Snap-Ring |
| 109-KSFFG | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A Two Shields & Snap-Ring |
| 109-KSZZG | Bore d N/A 45.000 mm | Outside Diameter D1 N/A 75.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 23400 N | Basic Static Radial Load Rating Co N/A 16600 N | Accessories N/A Two Seals & Snap-Ring |
| 110-KS | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Without Accessories |
| 110-KSZ | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A One Seal |
| 110-KSZZ | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Two Seals |
| 110-KSF | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A One Shield |
| 110-KSFF | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Two Shields |
| 110-KSFZ | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Shield & Seal |
| 110-KSG | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Snap-Ring |
| 110-KSFG | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A One Shield & Snap-Ring |
| 110-KSZG | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Seal & Snap-Ring |
| 110-KSFFG | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Two Shields & Snap-Ring |
| 110-KSZZG | Bore d N/A 50.000 mm | Outside Diameter D1 N/A 80.0000 mm | Width B N/A 16.00 mm | Basic Dynamic Radial Load Rating C N/A 24700 N | Basic Static Radial Load Rating Co N/A 18000 N | Accessories N/A Two Seals & Snap-Ring |
| 111-KS | Bore d N/A 55.000 mm | Outside Diameter D1 N/A 90.0000 mm | Width B N/A 18.00 mm | Basic Dynamic Radial Load Rating C N/A 28100 N | Basic Static Radial Load Rating Co N/A 21600 N | Accessories N/A Without Accessories |
| 111-KSZ | Bore d N/A 55.000 mm | Outside Diameter D1 N/A 90.0000 mm | Width B N/A 18.00 mm | Basic Dynamic Radial Load Rating C N/A 28100 N | Basic Static Radial Load Rating Co N/A 21600 N | Accessories N/A One Seal |
| 111-KSZZ | Bore d N/A 55.000 mm | Outside Diameter D1 N/A 90.0000 mm | Width B N/A 18.00 mm | Basic Dynamic Radial Load Rating C N/A 28100 N | Basic Static Radial Load Rating Co N/A 21600 N | Accessories N/A Two Seals |
| 111-KSF | Bore d N/A 55.000 mm | Outside Diameter D1 N/A 90.0000 mm | Width B N/A 18.00 mm | Basic Dynamic Radial Load Rating C N/A 28100 N | Basic Static Radial Load Rating Co N/A 21600 N | Accessories N/A One Shield |
